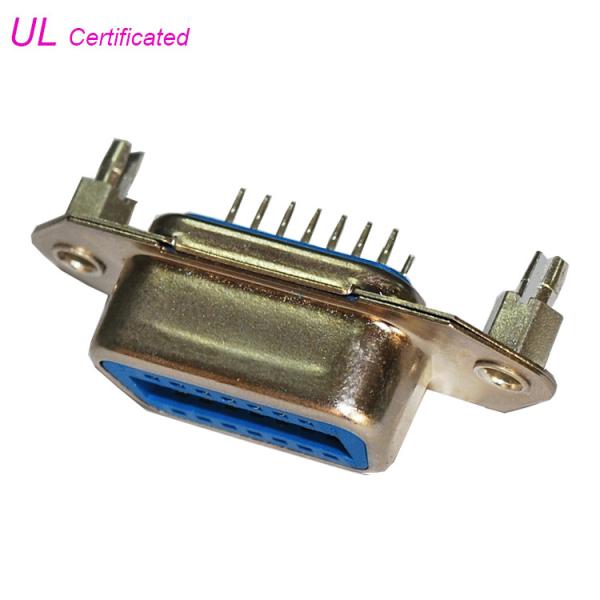

57 CN Series Champ 14 Pin Centronic Female Connector Straight Angle PCB Connector

Name: 57 CN Series Champ 14 Pin Centronic Female Connector Straight Angle PCB Connector
Brand: FUYCONN
Price: 1 USD

57 CN Series Champ 14 Pin Centronic Female Connector Straight Angle PCB Connector Manufactures

Place of Origin : China

Brand Name : FUYCONN

Certification : UL 94-V0, ROHS-certified, ISO 9001:2008, ISO 14001:2004

Model Number : FUY57094

MOQ : 10pcs

Price : Negotiable

Packaging Details : Vacuum Tray + Carton

Delivery Time : 7-10 days

Payment Terms : T/T or Paypal

Supply Ability : 1 million/ month

Product Name : Centronics PCB Connector

Product Line : 57 Series Connector

Type : Straight Angle PCB Connector

Color : Black or Blue

Number Of Terminal : 14 24 36 50 Pin

Gender : Female connector

Mounting Option : Board Lock

Application : PCB Board

Contact Now

Champ 50 36 24 14 Pin Centronics Connector Straight Angle Receptacle PCB Connector

57 CN Series Champ 14 Pin Centronic Female Connector Straight Angle PCB Connector
Detail Description
Product Category: Centronic connector
Product Line: Champ Connector
Type: Straight Angle PCB Connector
Number of Terminal: 50 36 24 14 pin
PCB Mount Style:Vertical
Connector Style:Receptacle
Gender: Female
Insulator Color: Black or Blue
Insulator Material: PBT
Contact pin Material: Phosphor Bronze
Shield Plating: Nickel
Centerline = 2.16mm [0.085in]
Mating Lock: Back Rivet Board Lock
Application: PCB Board

Advantage
1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample available in 2 days

Common Features

Designed for Cable-to-cable and cable-to-PC Board applications
Board Application
Available in Plug & Socket styles
Terminal Option with various types
Connector and hood sold as complete assembly
Available in low profile hood style
Metal shell provides grounding and shielding capability
Mates with industry compatible connector

Product Features

Product Type:	Centronics PCB Mounting Connector
Product Line:	Champ Connector
Gender:	Female
Connector Style:	Receptacle
Certerline :	2.16mm(0.85in)
Number of Position:	14 24 36 50 pin
Contact Plating:	Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U")
Terminals Type	Straight Terminals
Insulator Color:	Black or Blue
Shielded:	Yes
Orientation:	Parllel Lines
Mating connector lock:	Screws Lock

Materials

Contact Material:	Phosphor Bronze
Insulator:	PBT (UL 94-V0)
Shell	Nickel Plated Steel

Electrical Character

Current Rating:	5Amp
Withstanding Voltage:	AC 1000v r.m.s
Insulation Resistance:	1000 Megohms Minimum at DC 500V
Contact Resistance:	25M∩ Max Mated
Operation Temperature:	-55°C to +105°C

Application

1, VDSL Teleccom Equipment
2, Computer Peripherals
3, Communication Equipment
4, PCB Board
5, Cable to Panel
6, Cable to cable
7,Computer terminal
8,Telemetering
9,Test Equipment
10, Printer
