2x4 Port Female SFP Connector 160 Pin with Light Pipe

Name: 2x4 Port Female SFP Connector 160 Pin with Light Pipe
Brand: FUYCONN
Price: 15 USD

2x4 Port Female SFP Connector 160 Pin with Light Pipe Manufactures

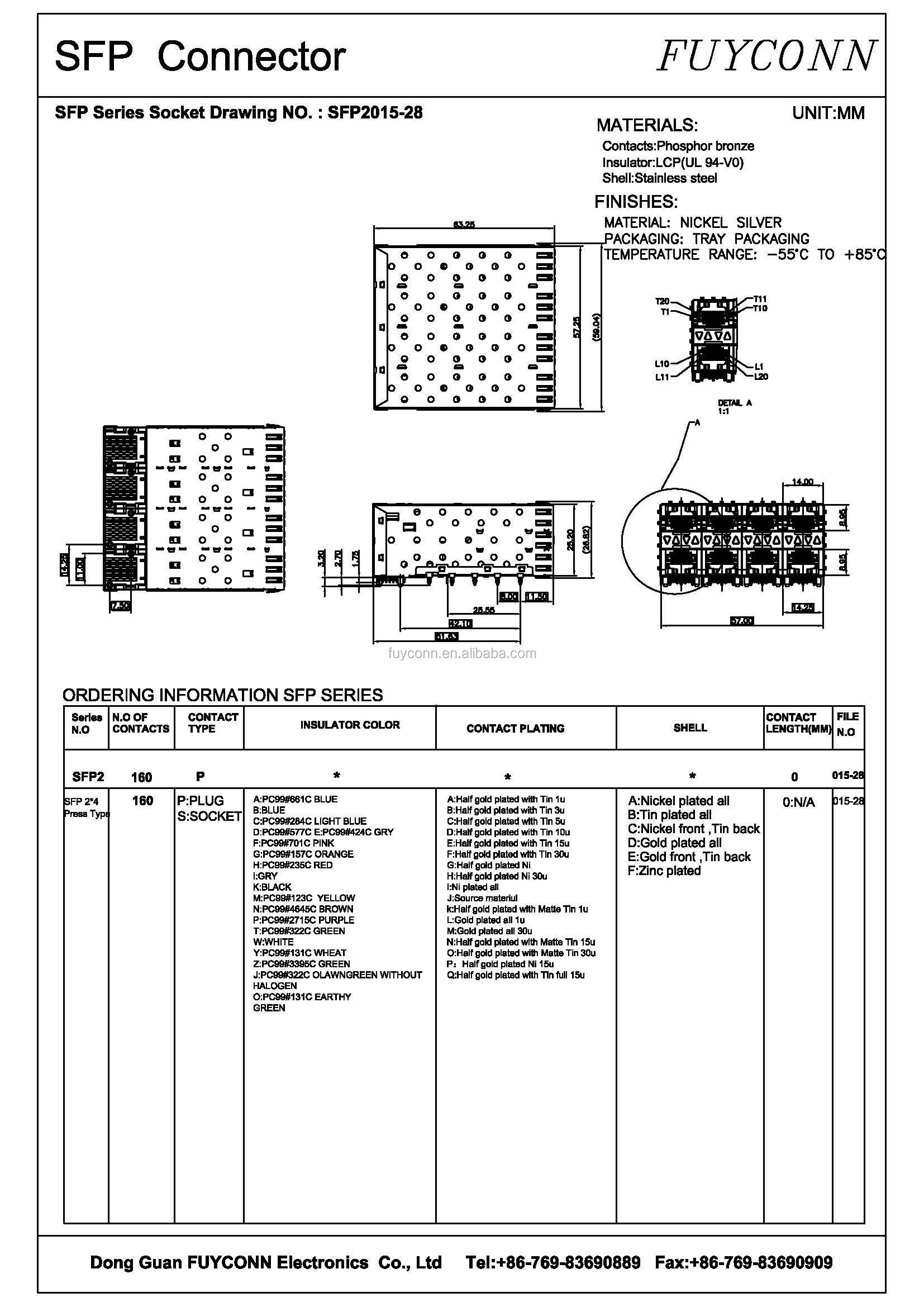

Model Number : FUYSFP2015-28

Brand Name : FUYCONN

Place of Origin : Guangdong, China

MOQ : 100

Price : $15

Number of Ports : 2*4 dual ports

Number of Terminals : 160 pin

Contact Pin Material : Phosphor Bronze

Insulator Material : PBT

Color : Nick silver

Feet Type : press pin

Lightpipe : with light pipe

Current Rating : 1AMP

Withstanding Voltage : 500v for one minute

Insulator Resistance : 500MΩ min (at DC500V)

Contact Resistance : 35MΩ Max

Operation Temperature : -55°C to +105°C

Connector Gender : Female

Contact Type : Small Form-factor Pluggable

Finish : Nickel Silver

Contact Now

Product Description

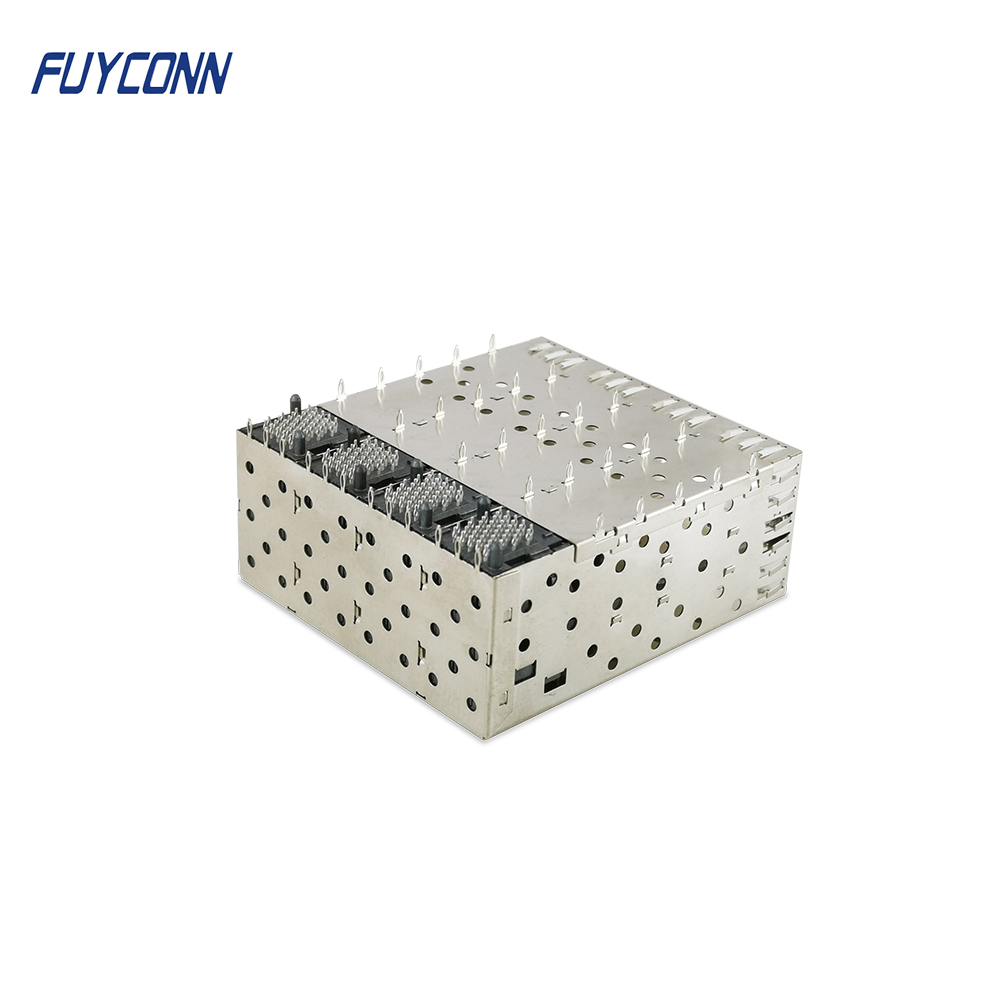

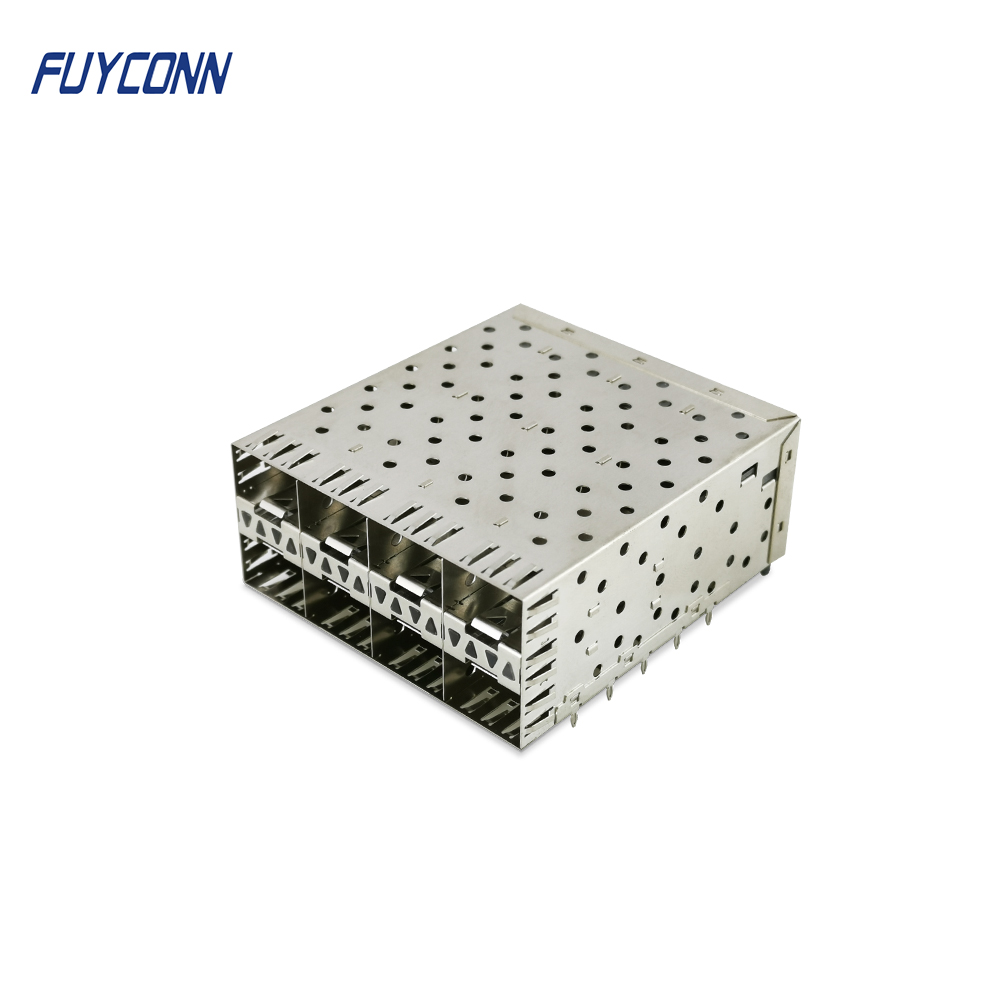

2x4 Ports Housing Shielded Press-Fit Stackable 160P SFP Connector 2-by-4 Multi-Port Female SFP Cage Assemble Connector w/ Light

SFP (Small Form-factor Pluggable) module connector with various data speed rate is one of the major optical transceivers used for data communication. SFP connector was first introduced in early 2000 and designed to replace the previous gigabit interface converter (GBIC) connector in fiber optic and Ethernet high-speed networking systems. Based on the IEEE 802.3, SFF-8472 protocol specification, SFP module connectors has the ability to handle up to 4.25Gb/s with greater port density than the GBIC, which is why SFP is also known as mini GBIC. This allowed it to quickly become the connector of choice for system administrators who liked the idea of being able to significantly increase their output per rack. The SFP connectors can support Gigabit Ethernet, Fibre Channel, Synchronous Optical Network (SONET) and other communication standards.

To cater the need for faster transmission speed, the SFP+ (or SFP10) was introduced in 2006, as an extension of the SFP connector. Based on IEEE802.3ae, SFF-8431, and SFF-8432 protocol specifications, the SFP+ is designed to support data rates up to 10Gb/s. Compared with its predecessor SFP, the newly SFP+ can support Fibre Channel, 10GbE, SONET, OTN, and other communication standards. The SFP+ is similar in size to the SFP connector. And the primary difference between an SFP and a SFP+ is their transmission speed. It is noticeable that SFP/SFP+ are both copper and optical.

Product Feature
1. Product Name:	SFP Connector
2. Product Line:	Small Form-factor Pluggable
3. Connector Gender:	Female Centronic Connector
4. Contact Type	Small Form-factor Pluggable
5. Number of Position:	160pin
6. Ports:	2*4 8 Ports
7. Contact Material:	Phosphore Bronze
8. Finish:	Nickel Silver
9. Insulation Material:	PBT
10. Lightpipe	with

Electrical Specifications
1. Current Rating:	1AMP
2. Withstanding Voltage:	500v for one minute
3. Insulator Resistance:	500MΩ min (at DC500V)
4. Contact Resistance:	35MΩ Max
5. Operation Temperature:	-55°C to +105°C

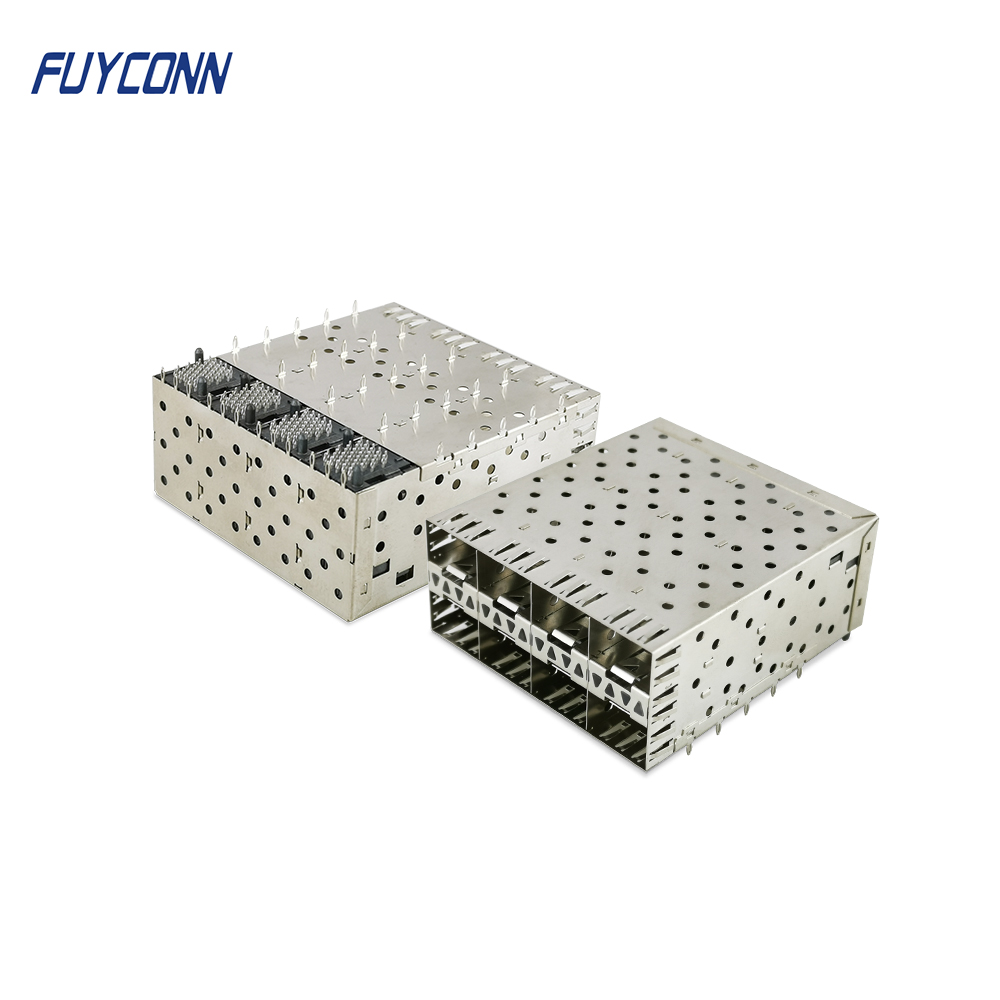

2x4 Port Female SFP Connector 160 Pin with Light Pipe

Application

1, Networking equipment

2, Router/Switch

3, Data/Communications

4, High-end servers

5, Networking

6, Telecommunications

7,Switches

8,Telecommunications hardware

9,Fibre Channel and Gigabit Ethernet

10, Servers

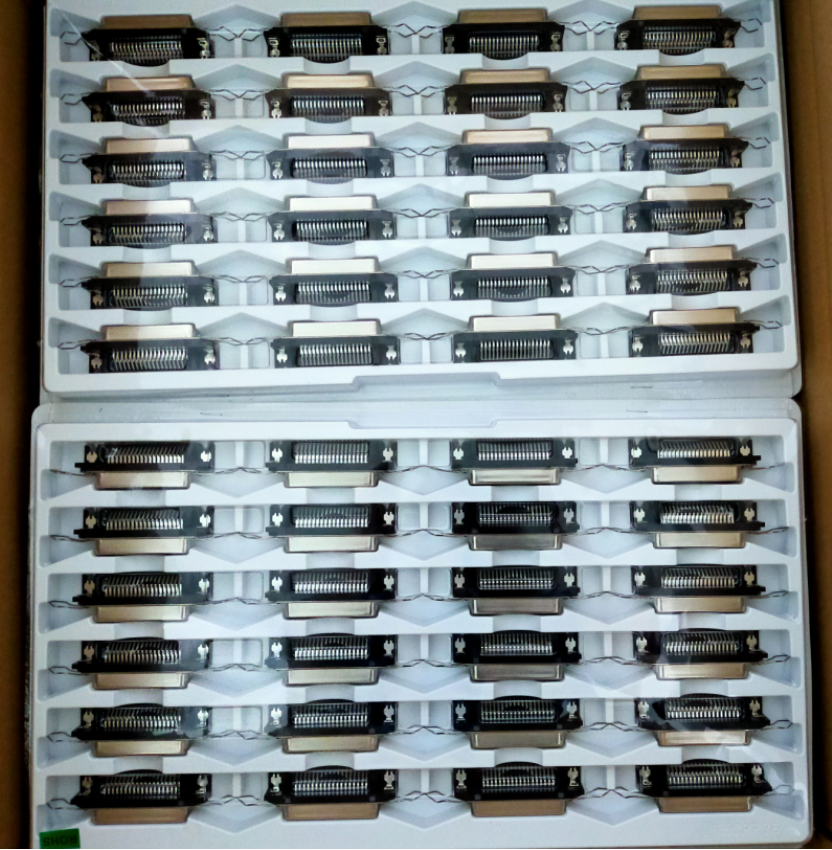

Strong Package

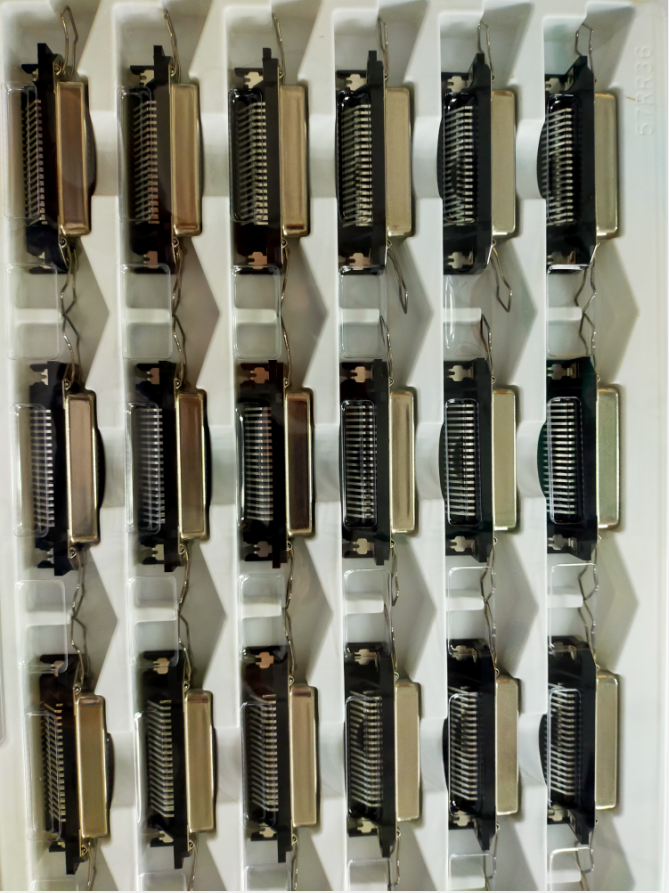

1, Vacuum Tray

2, PE Bag

3, Take strong bags/boxes/cartons

4, PE Bag + Strips

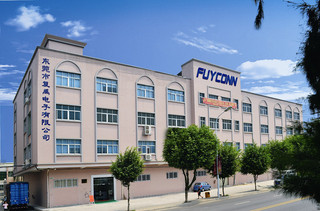

Company Profile

Dongguan Fuyconn Electronics Co,. Ltd

Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models for you choice.

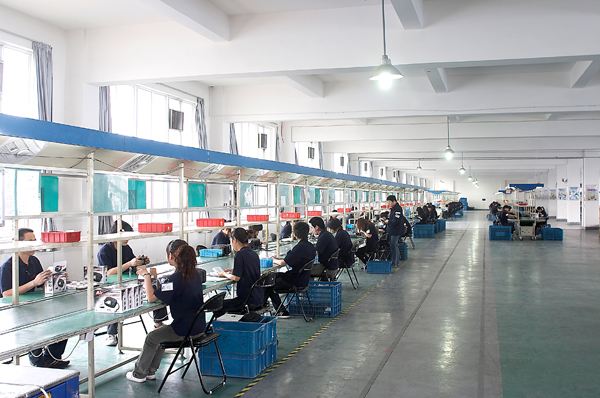

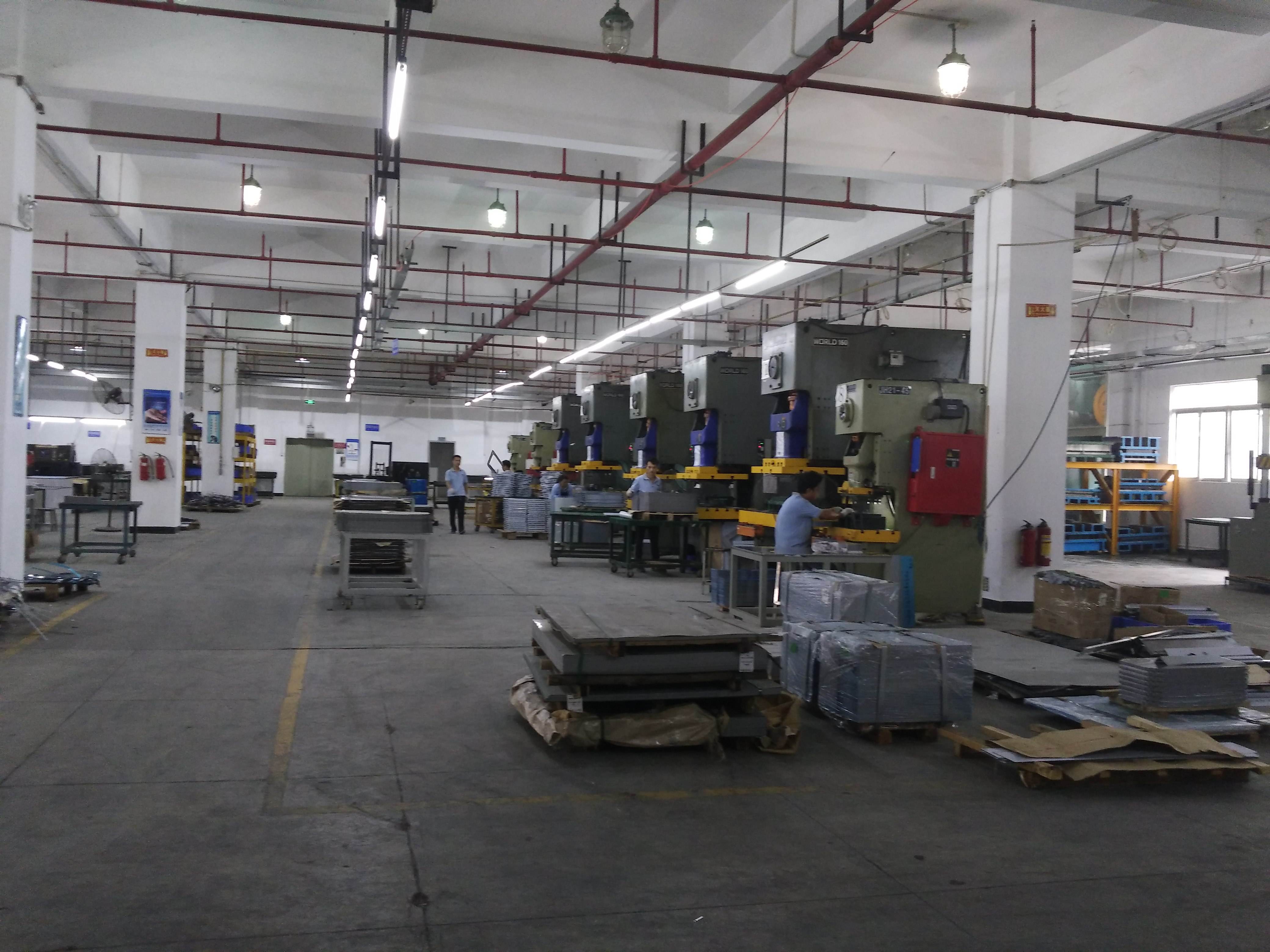

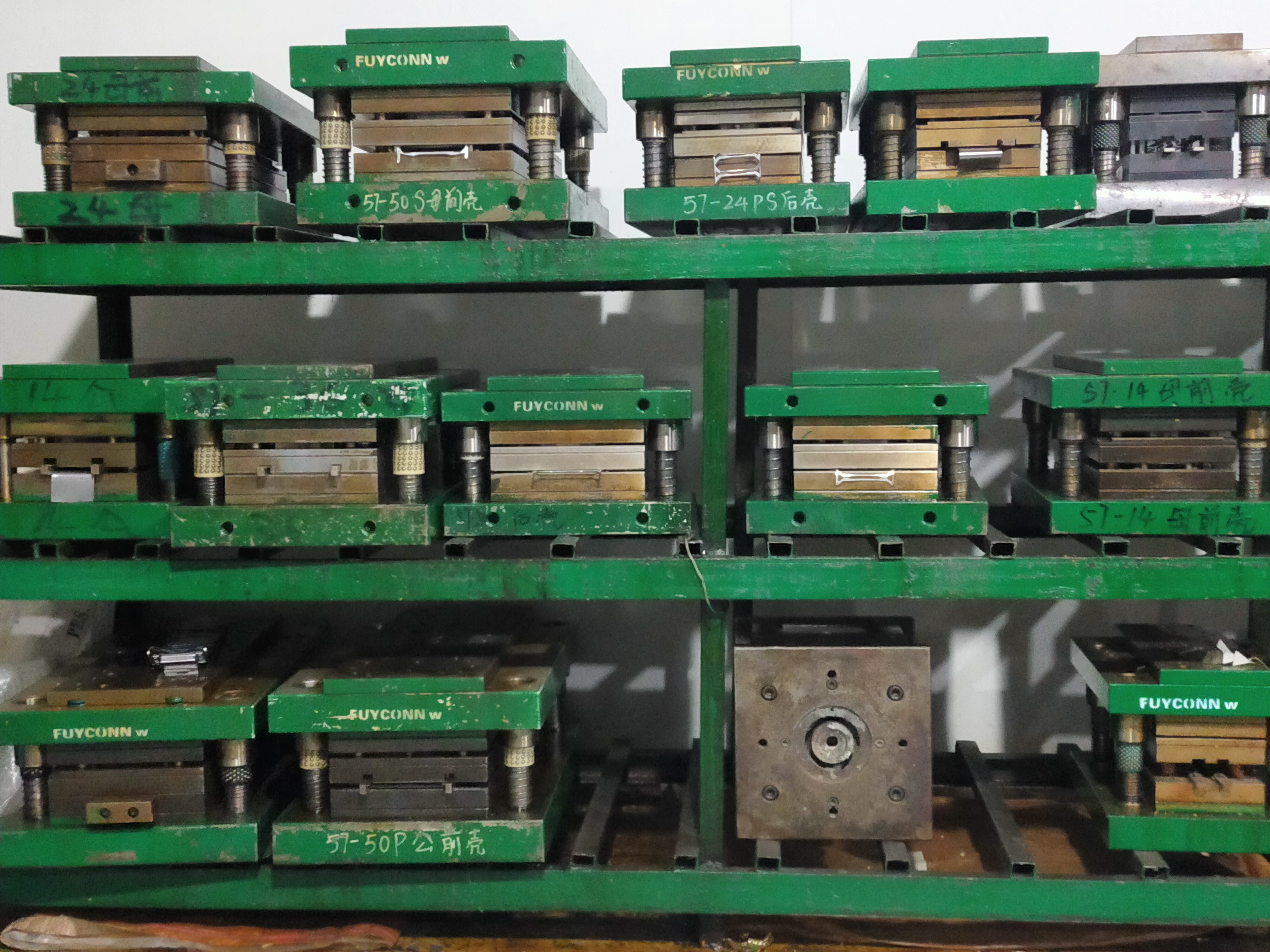

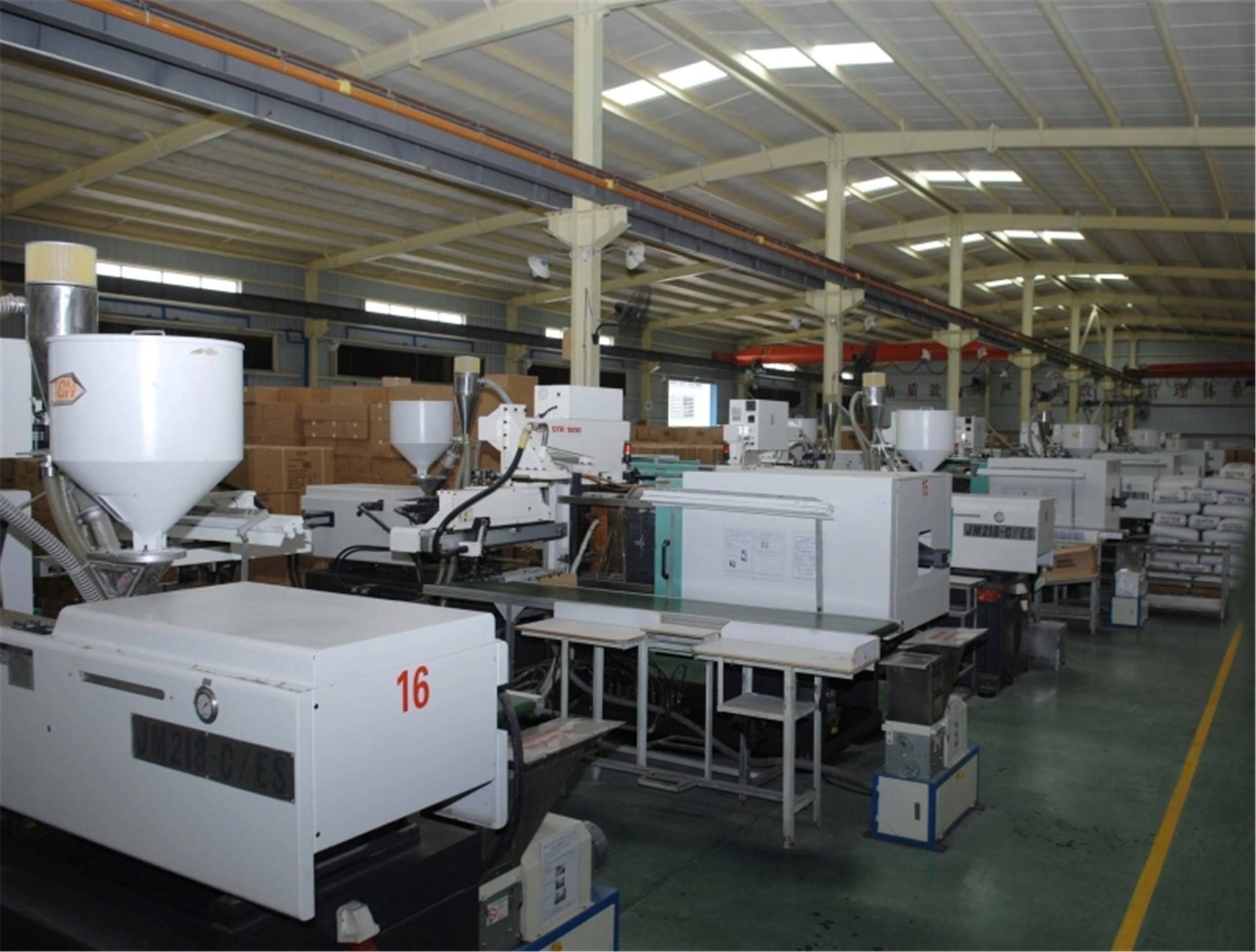

Our products are UL- and SGS-certified and are compliant with the RoHS Directive. Our product defect rate is less than 0.5% and 99% of our customers repeat their orders with us. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers a total of 5,000 square meters with R&D Department, molding workshop, Plastic Inject workshop, Stamping workshop, Assembly production lines.

Why Choose Us

1, 16 years Centronic Connector production experience
2, R&D engineers with over twenties years' working experience
3, Thousands molds for your choice
4, UL Certificted, ROHS compliant
5, Factory-direct price
6, Free sample within 2 days
7,With short lead time, within one week for normal products.
8, No MOQ, you can try our products and services easily
9,Customer’s Logo can be added on to product and package
10,Plastic Inject workshop, Stamping workshop, Assembly production lines. we are able to control quality, costs, delivery time better than our competitors.
11,Variety payment methods

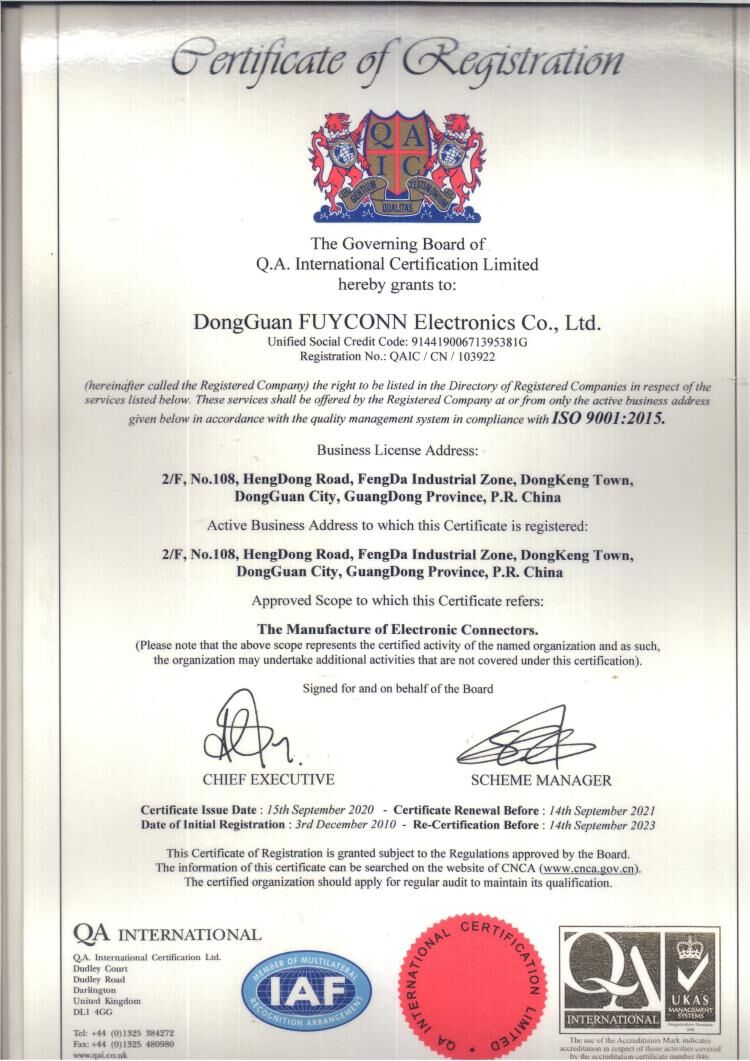

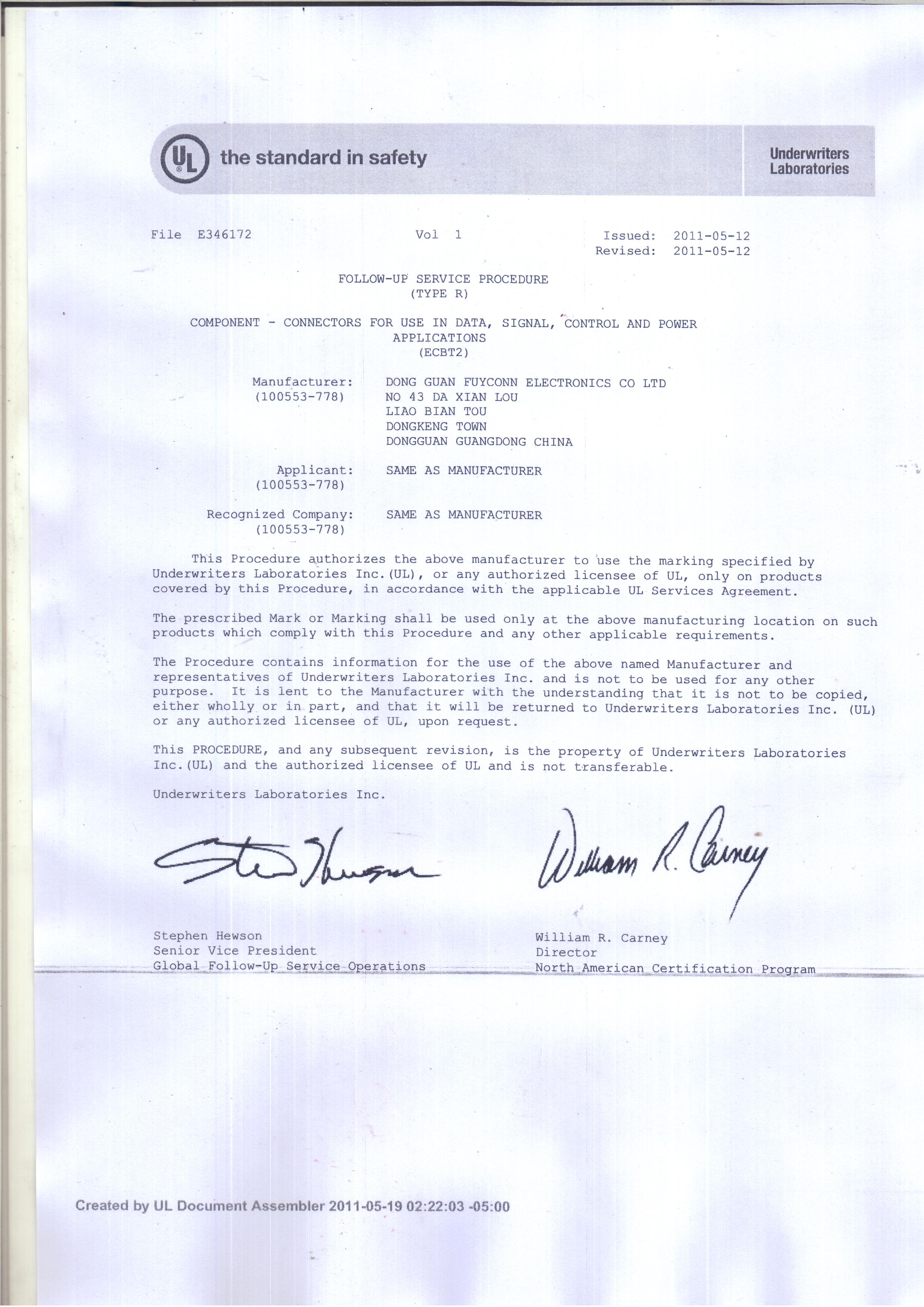

Certification
